Short Wave Pass Filters & Long Wave Pass Filters


Edge filters, also sometimes called dichroic filters, are coatings that include long wave pass and short wave pass filters. Specifically, these coatings transmit one range of wavelengths while blocking others. However, they are distinct from bandpass and notch filters in that they either pass wavelengths above (long wave pass) or below (short wave pass) a given single wavelength value, rather than a limited band of wavelengths within a range.


DSI custom manufactures a wide selection of edge filters for use at wavelengths ranging from the ultraviolet through the long-wave infrared. The designs can be optimized for various performance characteristics, including high in-band transmission, strong out-of-band blocking, polarization insensitivity, and sharp transitions between the passband and blocking region. DSI edge filters are distinguished by excellent durability with no wet/dry shift.


  • High in-band transmission
  • Sharp cut-on and cut-off slopes
  • Excellent out-of-band blocking
  • No wet/dry wavelength shift


  • Laser systems
  • Projection systems
  • Spectroscopy and fluorescence imaging
  • Military imaging, target designation and countermeasures
  • Hyperspectral sensors

Contact Us For More Information

    By submitting your information, you agree that Deposition Sciences may contact you. Because we respect the importance of your privacy, you may unsubscribe at any time. For any questions, you can review our Privacy Policy or reach us directly at [email protected].


    DSI MicroDyn magnetron sputtering method for the fabrication of edge filters. That enables us to tailor coating performance, cost and durability to meet your particular performance specifications and budget.

    MicroDyn: DSI employs this technology to deliver environmentally stable and exceptionally durable coatings from the UV to the midwave IR, making it ideal for many aerospace applications. Because MicroDyn deposition can be performed at relatively low temperatures, these edge filter coatings can be applied to a wide range of substrate types, including plastics and temperature-sensitive active devices.


    When specifying edge filters, it’s useful to understand some of the most common design and production tradeoffs in order to avoid writing specifications in a way that drive up cost unnecessarily. Some of the key specifications for edge filters are the half-power point (HPP) placement tolerance, slope steepness, and blocking requirements. The graph here shows how these are defined.

    Definitions of edge filter performance parameters. The Out-of-Band blocking may be specified to start at the first 1% or 0.1% transmission point, or sometimes at a given wavelength away from the half-power point, or even at a particular wavelength. It may be specified as a maximum value, average value, or total integrated power within the blocking range.

    The out-of-band blocking (OBB) is the amount of allowable transmission within the blocking region, which is usually specified to start at the 1% or 0.1% transmission point of the curve, or sometimes at a given wavelength away from the half-power point, or even at a particular wavelength. It may be specified as a maximum value, average value, or total integrated power within the blocking range.


    A half-power point (HPP) tolerance of ±0.5% (of the wavelength value) or higher is relatively routine, while tighter specifications tend to drive up cost.


    Similarly, slopes of 2% or greater are standard; smaller (steeper) values are more difficult. Thus, if there is a large separation between the wavelengths to be passed and rejected in a system, it’s important not to put arbitrarily tight constraints on these values. While extremely tight tolerances for these values can be achieved by measuring and selecting filters after fabrication, this can become expensive as part size increases, and may not be entirely practical in higher volumes.


    High absolute out-of-band blocking specifications (greater than OD3, or <0.1%) are costly because these require “over designing” the blocking region to ensure there are no possibilities ofleaks. In contrast, an equivalent tolerance on average blocking is much easier, and therefore less expensive, to achieve.

    It’s also important to realize that there is a key difference between the blocking characteristics of the typical longwave and shortwave pass filters. Specifically, the blocking range on longwave pass filters generally extends from the nominal blocking point all the way to X-rays. Similarly, the passband extends to wavelengths at which the substrate or coating materials themselves become opaque. In contrast, the blocking band for shortwave pass filters is usually limited and the optic eventually begins to transmit again. This is shown in the graphic. Attempts to extend the blocking range farther can compromise transmission in the passband. Thus, if an application requires extended out-of-band blocking, it’s better to design it to utilize longwave pass filters, rather than shortwave pass filters, or to incorporate wavelength specific absorbing substrates into the design in addition to the edge filter coating.


    Achieving very high out-of-band blocking usually requires compromising the in-band transmittance because the very thick blocker coating layers can cause absorption and scatter, and the larger number of layers is more susceptible to tolerance problems during manufacture. Thus, it is important to try to avoid simultaneously specifying both high peak transmittance and strong out-of-band blocking.


    The spectral characteristics of all optical coatings shift to shorter wavelengths as angle of incidence is increased, and/or temperature is decreased, and this can dramatically affect the performance of edge filters. In some cases, this effect can be purposefully employed to enable tuning of the filter’s performance over a limited range of wavelengths.

    Download the Datasheet

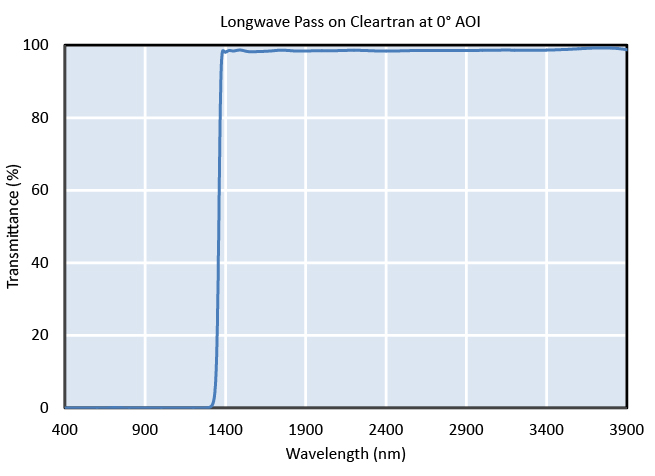

    Longwave pass filter for the near and midwave infrared.
